Contractor Rig Dimensions

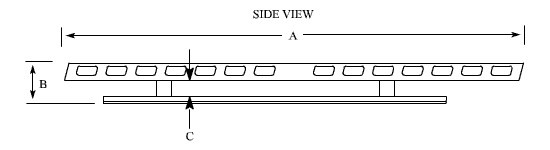

DIMENSIONS (inches) - CONTRACTOR RIG - SIDE VIEW - ENCLOSED BODY
A |
B |
C |
102 |
12.0 |
6.0 |
120 |
12.0 |
6.0 |
138 |
12.0 |
6.0 |
147 |
12.0 |
6.0 |
156 |
12.0 |
6.0 |
174 |
12.0 |
6.0 |

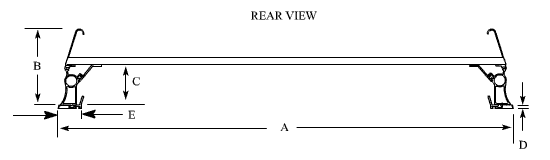

DIMENSIONS (inches) - CONTRACTOR RIG - REAR VIEW - ENCLOSED BODY
A |
B |
C |
D |
E |
Variable as needed |
12.0 |
11.4 |
.563 |
4.45 |
Utility Rig Dimensions
A |
B |
C |
D |
E |
Varible as needed |
12.6 |
6.0 |
.563 |
4.45 |
